The Helweg Design pedal mounting system locks down your gear for a professional, no-compromise pedalboard setup.

Type-L brackets offer a simple, secure way to mount pedal enclosures that have side screws.

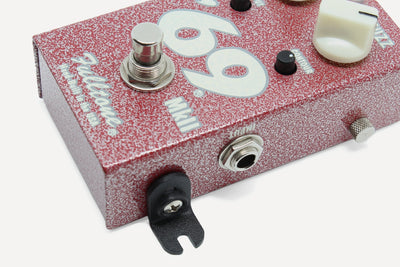

Fulltone 69 Fuzz with pedal mounting brackets

The industry's only adjustable L-shaped screw-mounting bracket.

A simple design finely tuned to mount a variety of pedal enclosures that have side screws.

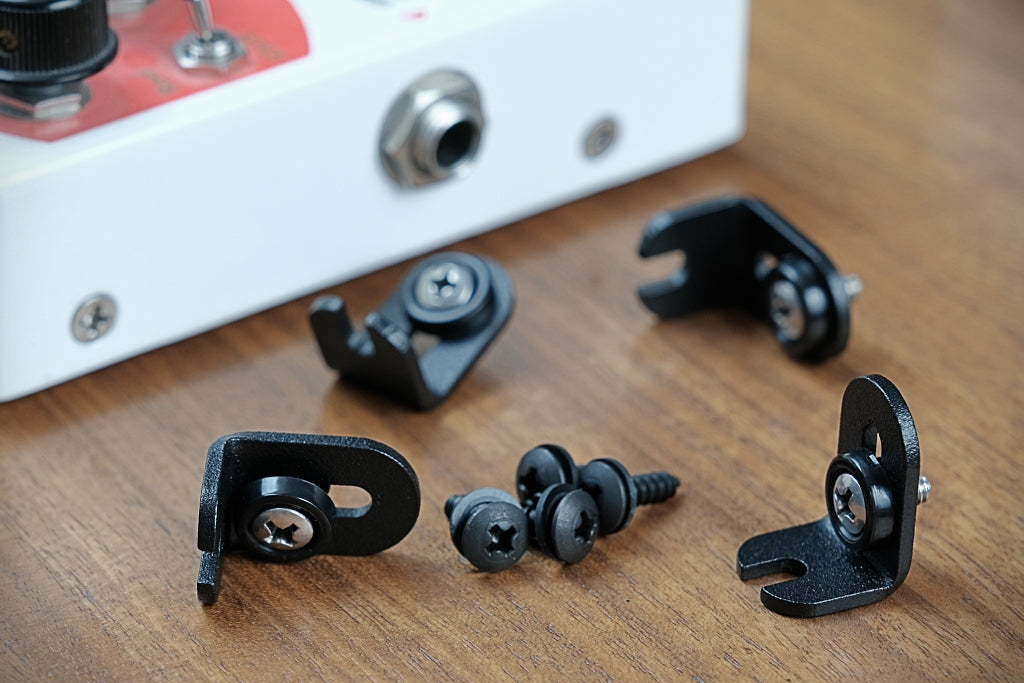

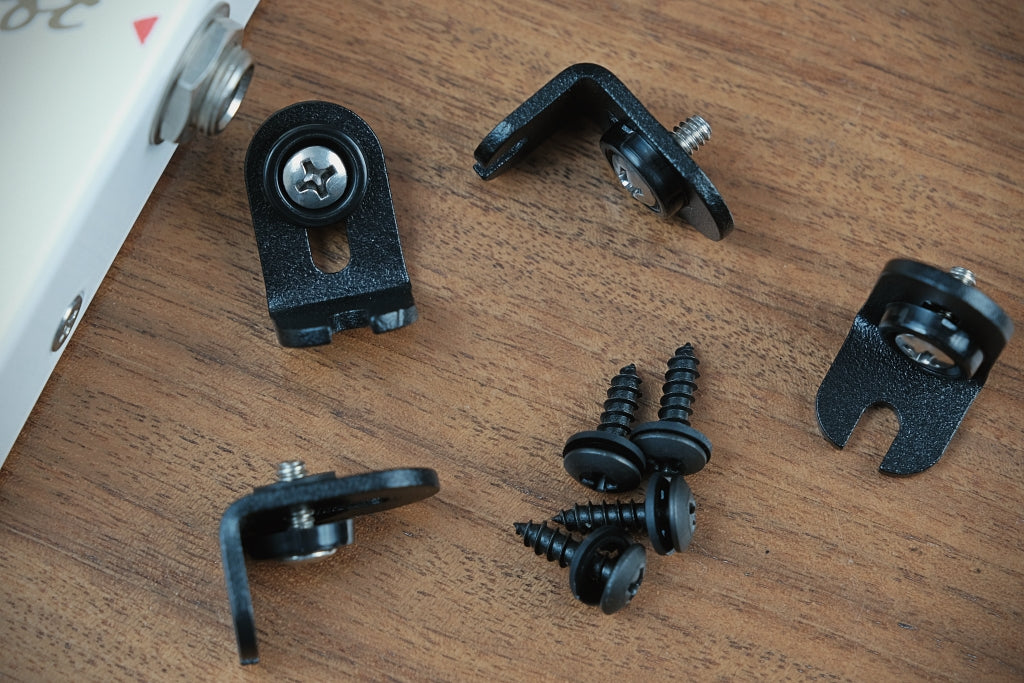

Hardware Packs

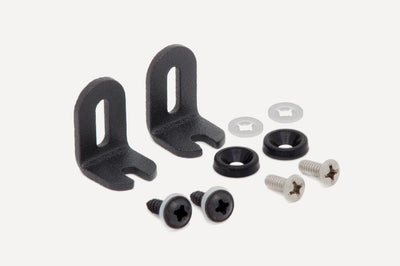

All packages include

  • 2 brackets
  • wood-mounting screws
  • protective nylon washers
  • enclosure mounting screws
  • Use this pack for enclosures with common-sized machine screws.

    Includes: #6-32 x 3/8" screws, countersunk washers for slot

    Examples: Fulltone single-switch pedals, Jetter Gear

  • Use this pack for enclosures with smaller screws.

    Includes: #4-40 x 3/8" screws, countersunk washers for slot

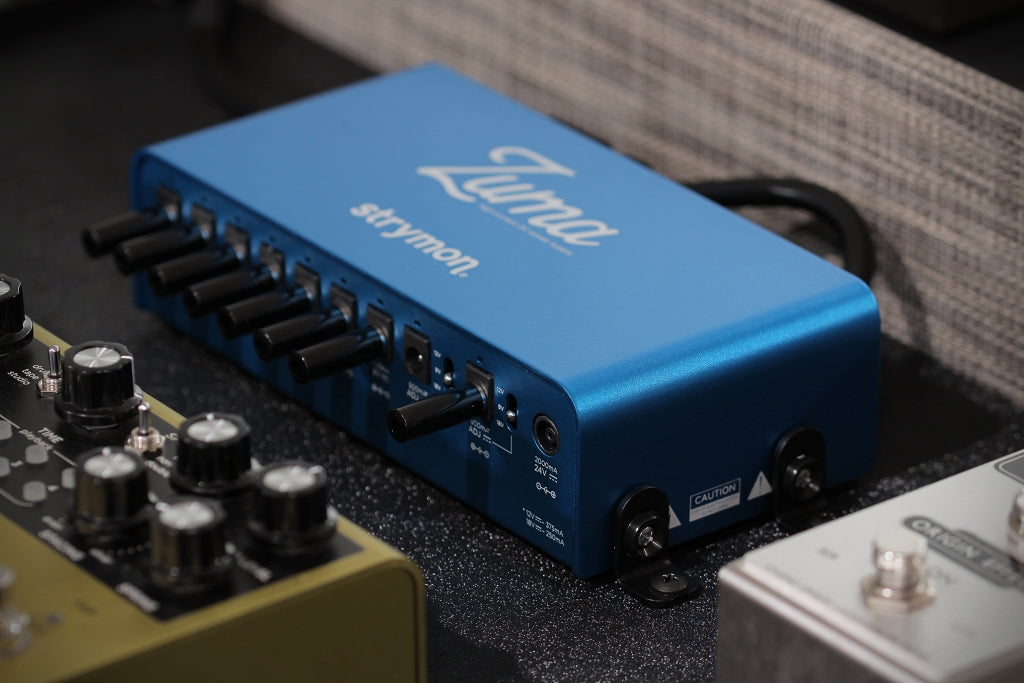

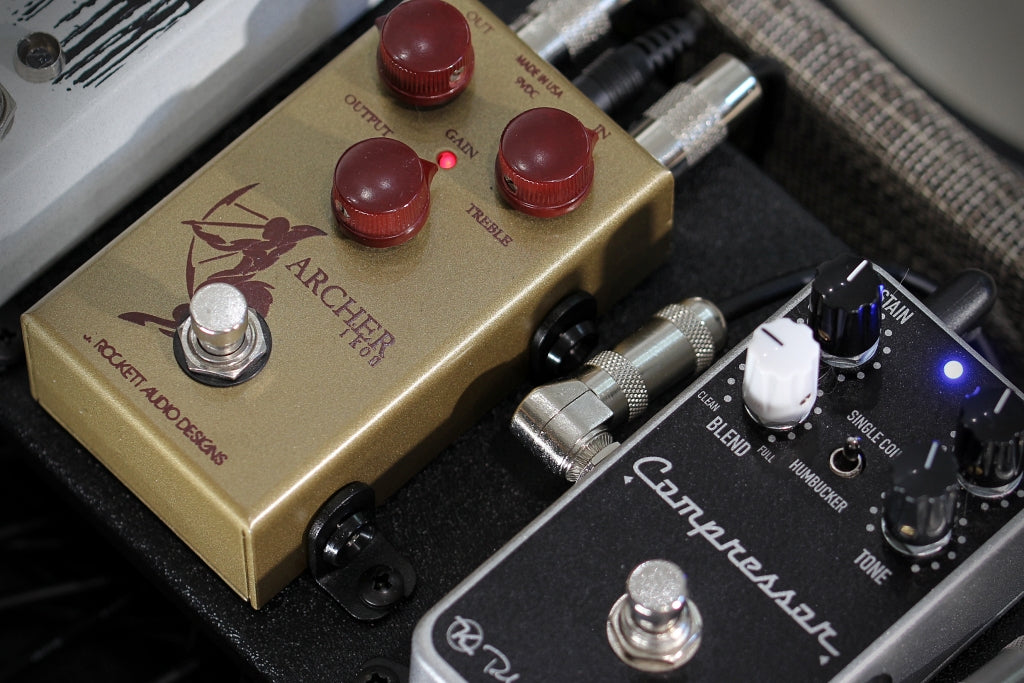

    Examples: J. Rockett (tour series), Strymon Zuma

  • Use this pack for Strymon Ojai

    Includes: #2-56 x 3/8" screws, shoulder washers for slot

  • We're working to assemble additional hardware packs. If you have a pedal that needs different hardware, please let us know.

    Other pedals with side screws: Morley pedals, Cioks power supplies, Boss DD 5000 Delay

    • 14-gauge steel
    • Textured black powder-coat finish
    • Mounts to any flat, wooden surface
    • Nylon washers protect pedal finish
    • Manufactured in the Kansas City metro area
    • 5-year warranty
  • Dimensions

    • Height: 0.875 " (22mm)
    • Width: 0.56" (14 mm)
    • Depth: 0.6" (15 cm)


    • Bracket Weight: 0.2 oz.
    • Package Weight: 0.7 oz.

Need help mounting your gear?

Full setup services are available for custom pedalboard orders with the consulting package.

Visit our custom shop for more information.


What can I mount with Type-L brackets?

Use two brackets in opposite corners to mount standard-size units (about the size and weight of a basic Boss pedal). Each package includes two brackets and the hardware for one such pedal. We recommend using two pairs for heavier units.

Some enclosures have both bottom screws and side screws (for example, the new Boss DD 500 Delay). Combine the Type-L brackets with other bracket models to mount these non-typical units.

The Type-L bracket is also required to mount some extra-large switchers and control units, some exceeding 8–10 pounds. Safe mounting may require four, six, or more brackets. We recommend using all the available enclosure screws for these weighty units.

What tools are required?

For best results, drill mounting holes in the pedalboard deck using an electric hand drill with a 3/32” drill bit. Drive in and remove the wood screws once before adding the brackets. After that, brackets can be quickly mounted and removed with a drill gun or Phillips screwdriver.

Most enclosures use basic Phillips-head screws. However, mounting some pedals requires alternate-sized Phillips bits, flat head bits, or even specialty bits (TC Electronics).

Always install enclosure screws by hand to avoid damaging the pedal. A drill gun should only be used for mounting wood screws in the pedalboard deck.

Will I need additional parts?

Most pedals require longer-than-stock side screws to accommodate the added thickness of the Type-L bracket and nylon spacers. We are currently working to assemble hardware packs for various models. If you need different hardware, contact us for assistance.

It's often possible to find a suitable screw or spacer at your local hardware store. When sourcing new enclosure screws, line up the threads with an original screw to ensure they match.

Can I mount pedals to a metal board surface?

This slightly more technical endeavor can be achieved using machine screws backed with a washer and nut. Results will be best with a drill press, quality metal drill bits, and some experience.
