The Helweg Design pedal mounting system locks down your gear for a professional, no-compromise pedalboard setup.

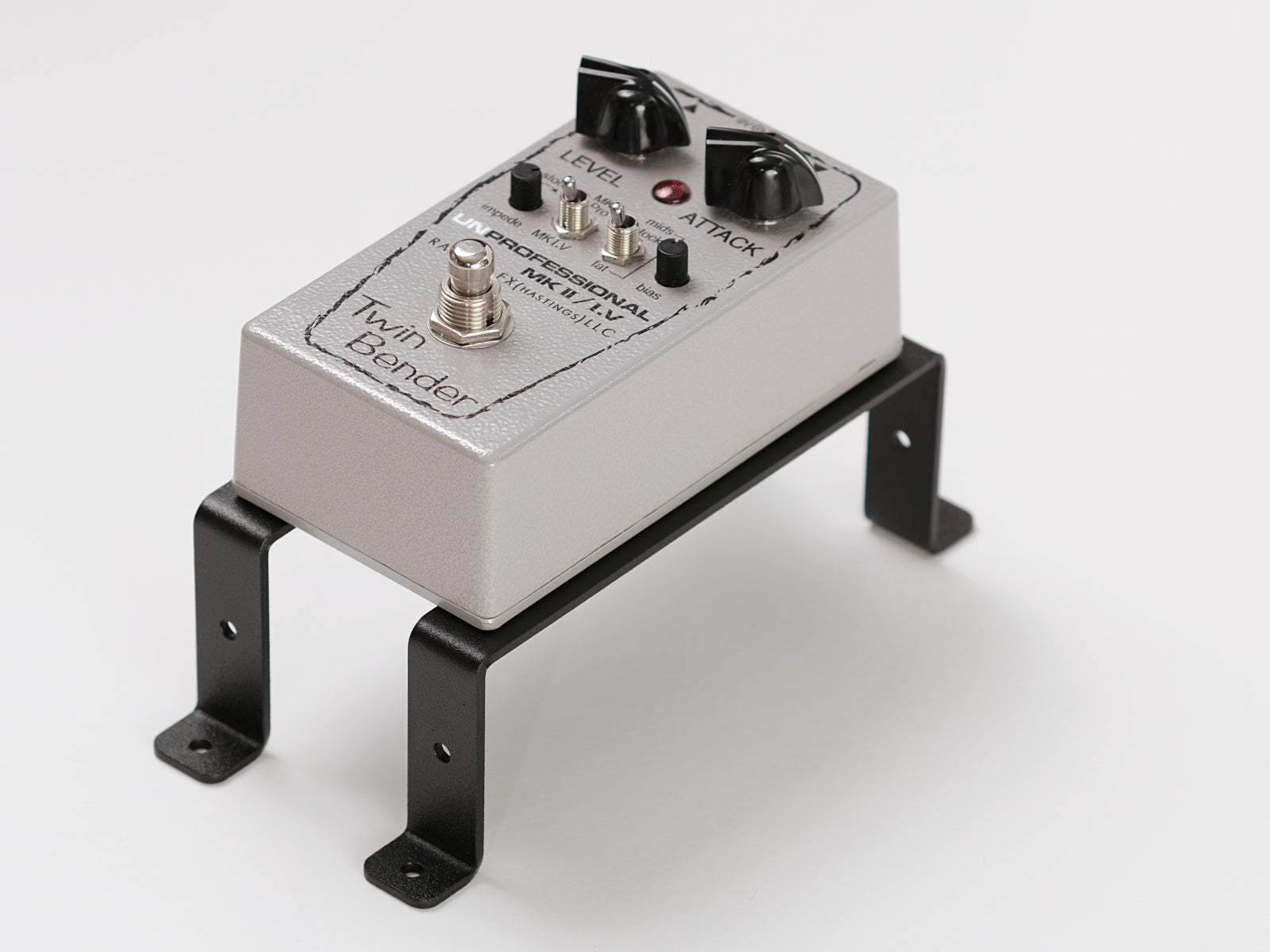

Helweg risers offer a versatile, secure way to boost nearly any pedal enclosure. They can also support a plywood panel to create a solid back-row tier.
The ultimate flexibility to create a secure raised pedalboard level—exactly where you need it.
US Patent D838575

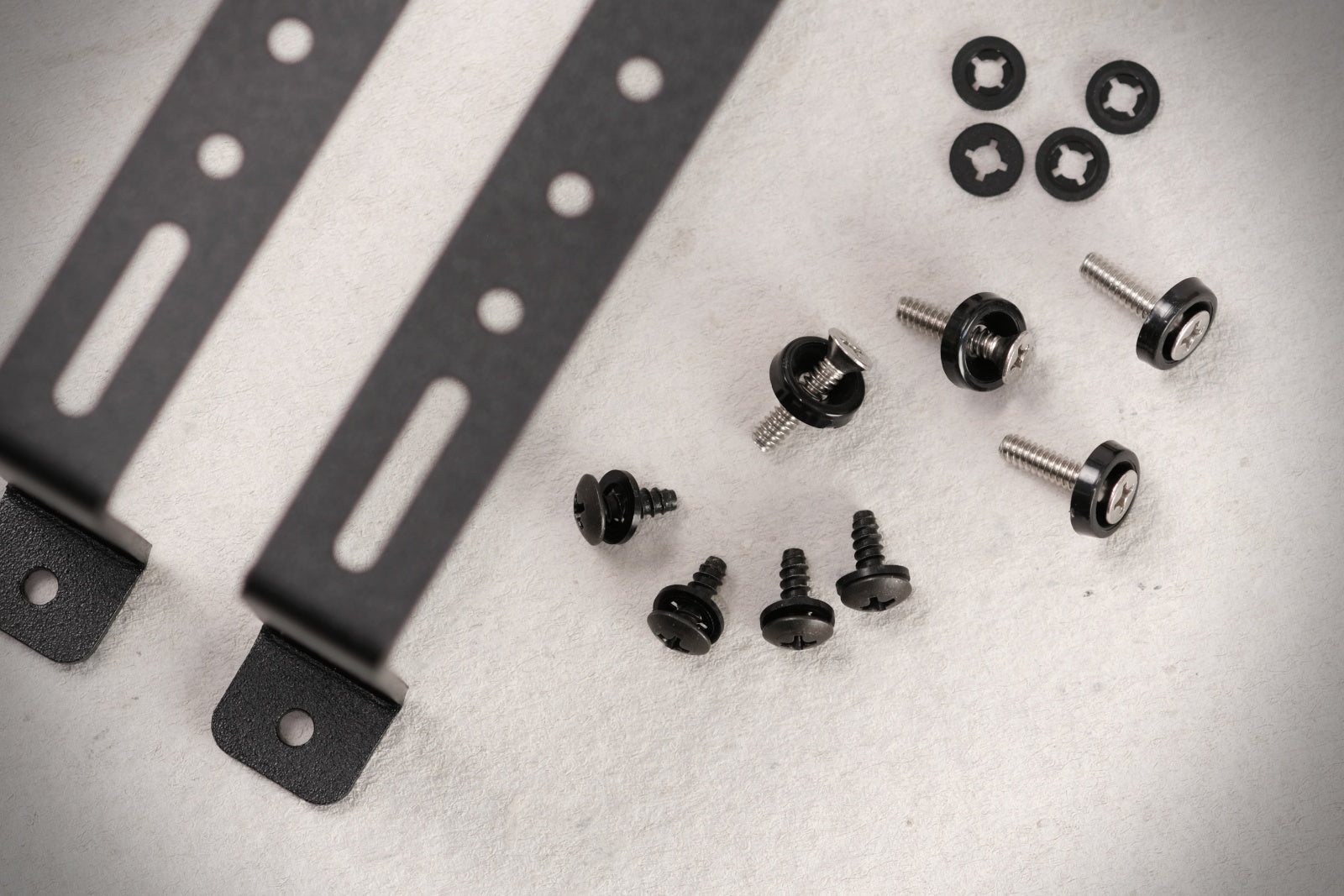

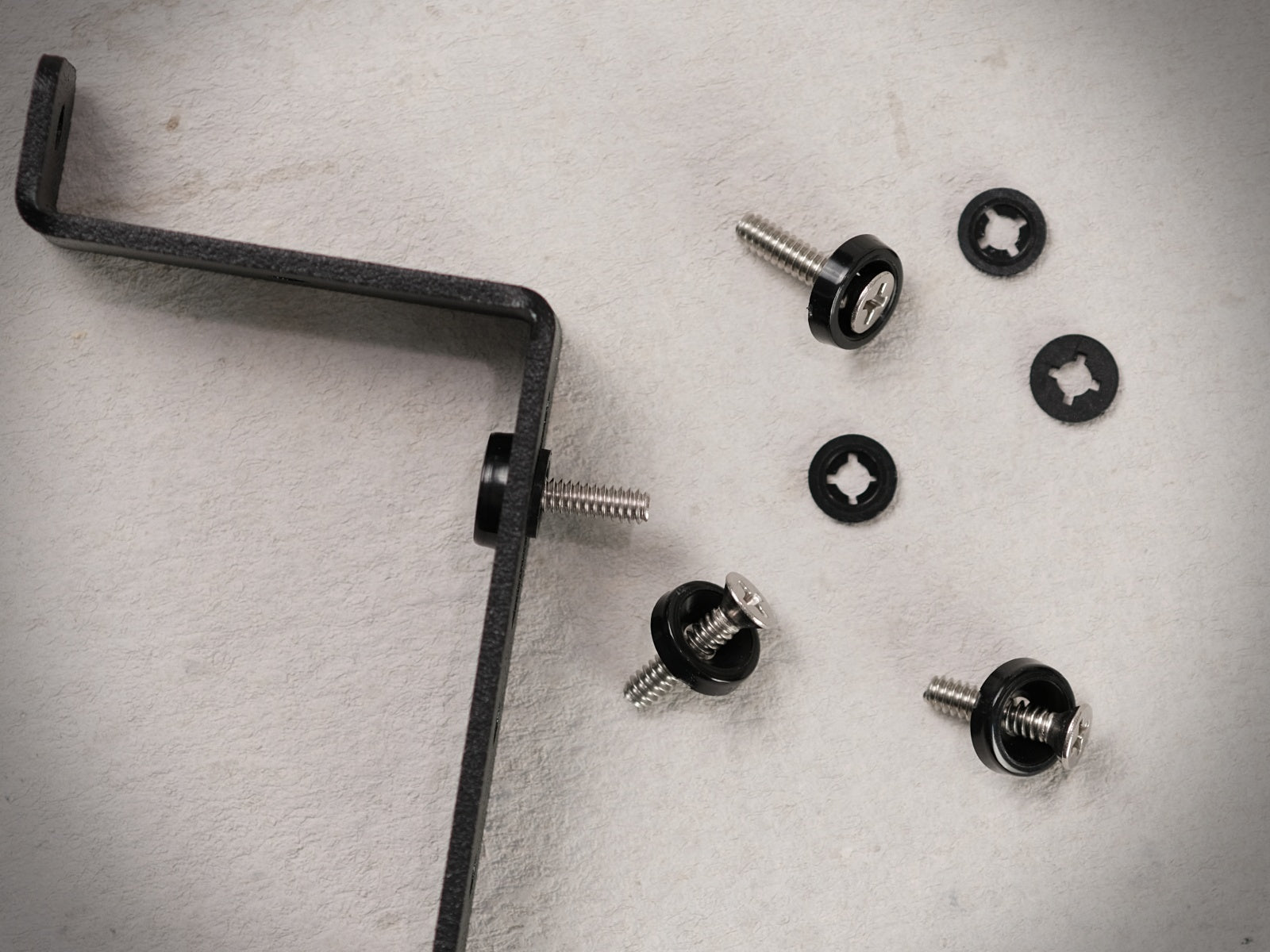

All packages include 2 risers, wood-mounting screws, and mounting screws for a specific enclosure style.

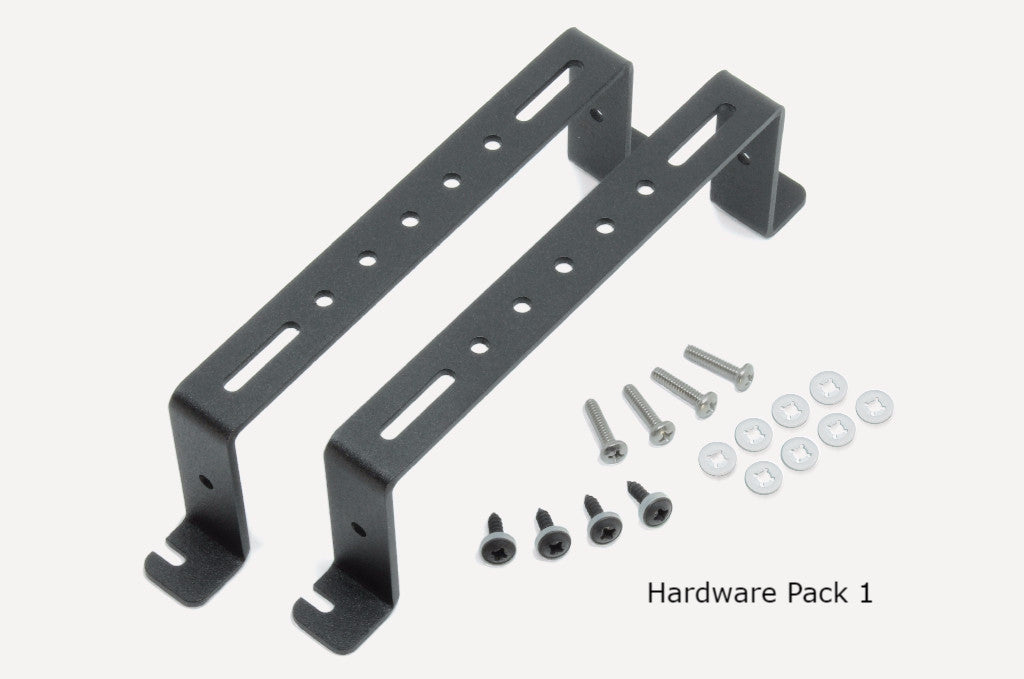

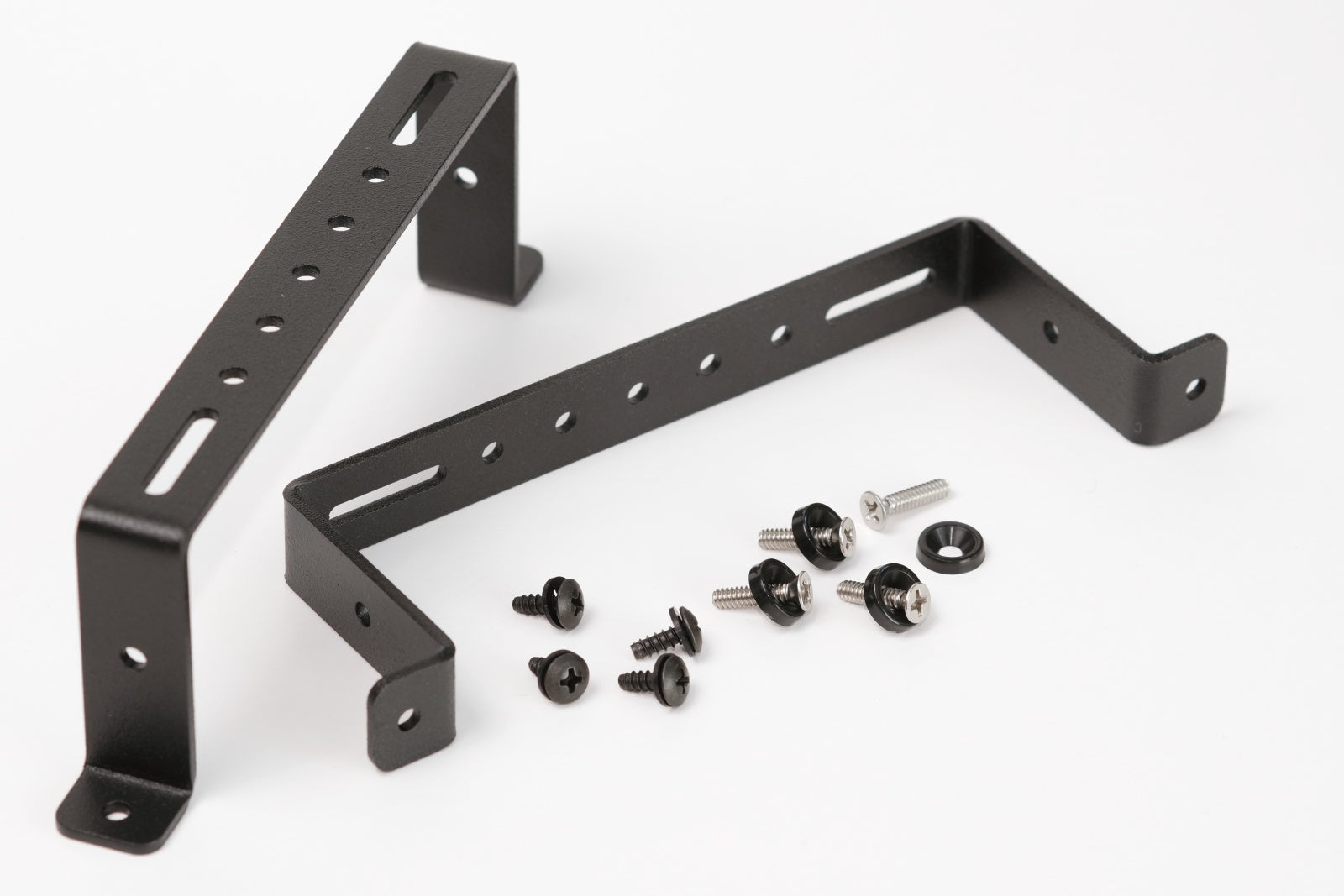

Hardware Pack 1 includes longer screws (#6-32 x 5/8") for common enclosures with countersunk-screw base plates. These include MXR, Analogman, JHS Pedals, Keeley, Xotic, and hundreds more.
Hardware Pack 2 includes short screws (#6-32 x 1/2") for sheet-metal enclosures including Strymon.
Hardware Pack 3 includes specially threaded screws and spacers for Boss and similar Japanese enclosures with rubber base-plate pads.
Hardware Pack 4 includes metric screws (3mm x 12mm) for Eventide, TC Helicon.
Hardware Pack 5 includes L-Shaped brackets with additional screws and spacers for enclosures with side screws. Examples include J. Rockett, Fulltone, and Jetter.
Hardware Pack 6 includes special screws used exclusively by TC Electronics.
Each package includes a riser pair, wood screws, and hardware for directly attaching one effect pedal—no Velcro required. The versatile design accommodates a wide range of enclosure sizes. Two mini pedal enclosures of the same dimensions can often share a riser pair.
Risers can also support a plywood panel to create a solid raised tier. A quality 3/8" (9 mm) thick plywood panel stays rigid without center support up to about 12" (30 cm) long. Add more risers to support longer panels.

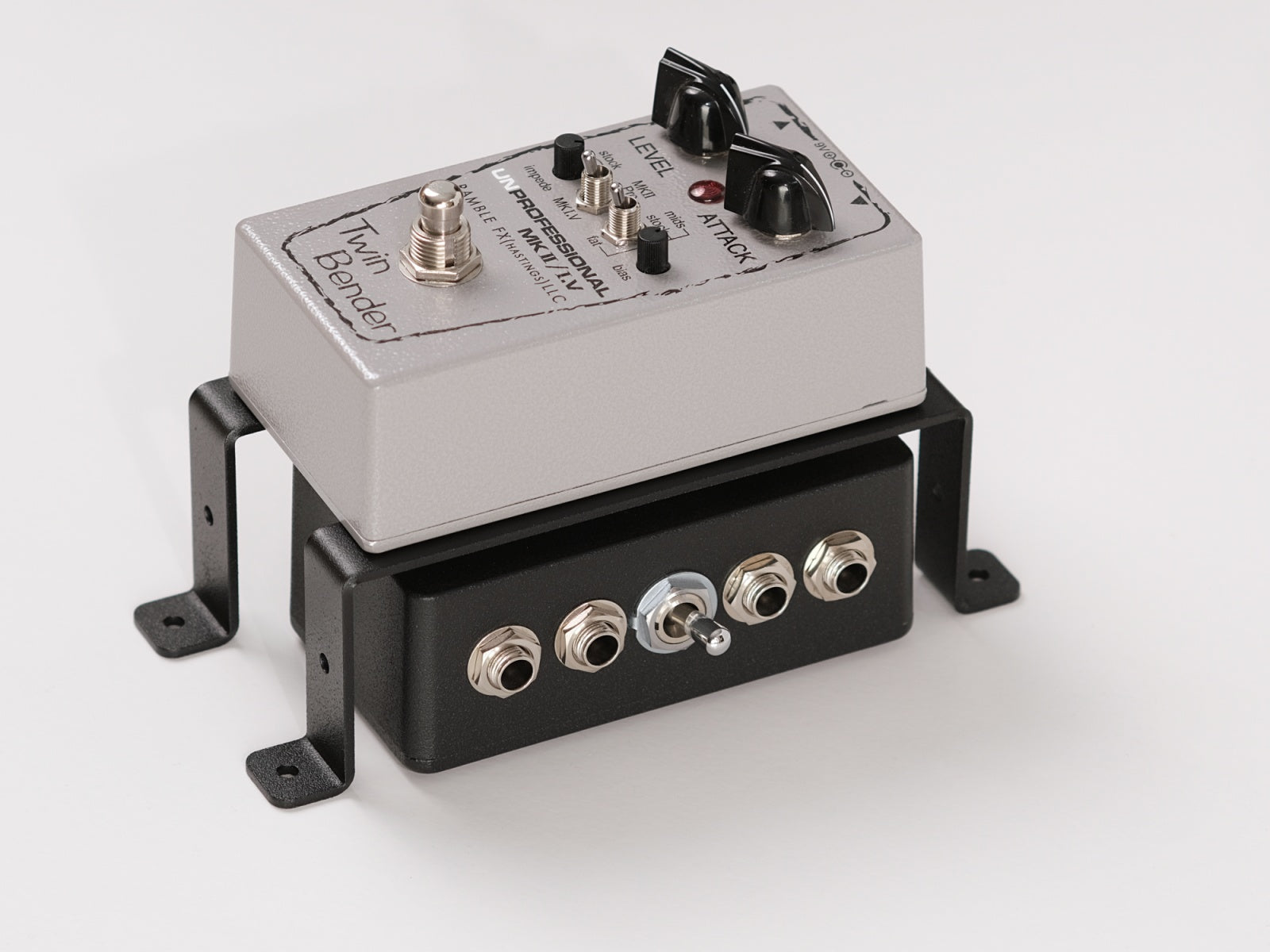

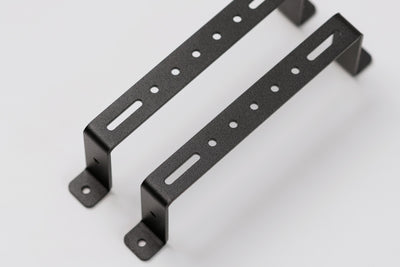

The 2" riser height allows clearance for a full-size pedal enclosure as well as many patchbays, DI boxes, buffers, and other devices not requiring foot access.
Helweg risers are a mounting bracket and riser in one, screw-mounting directly to the pedal and pedalboard—no Velcro required. The slim steel construction offers lightweight durability.

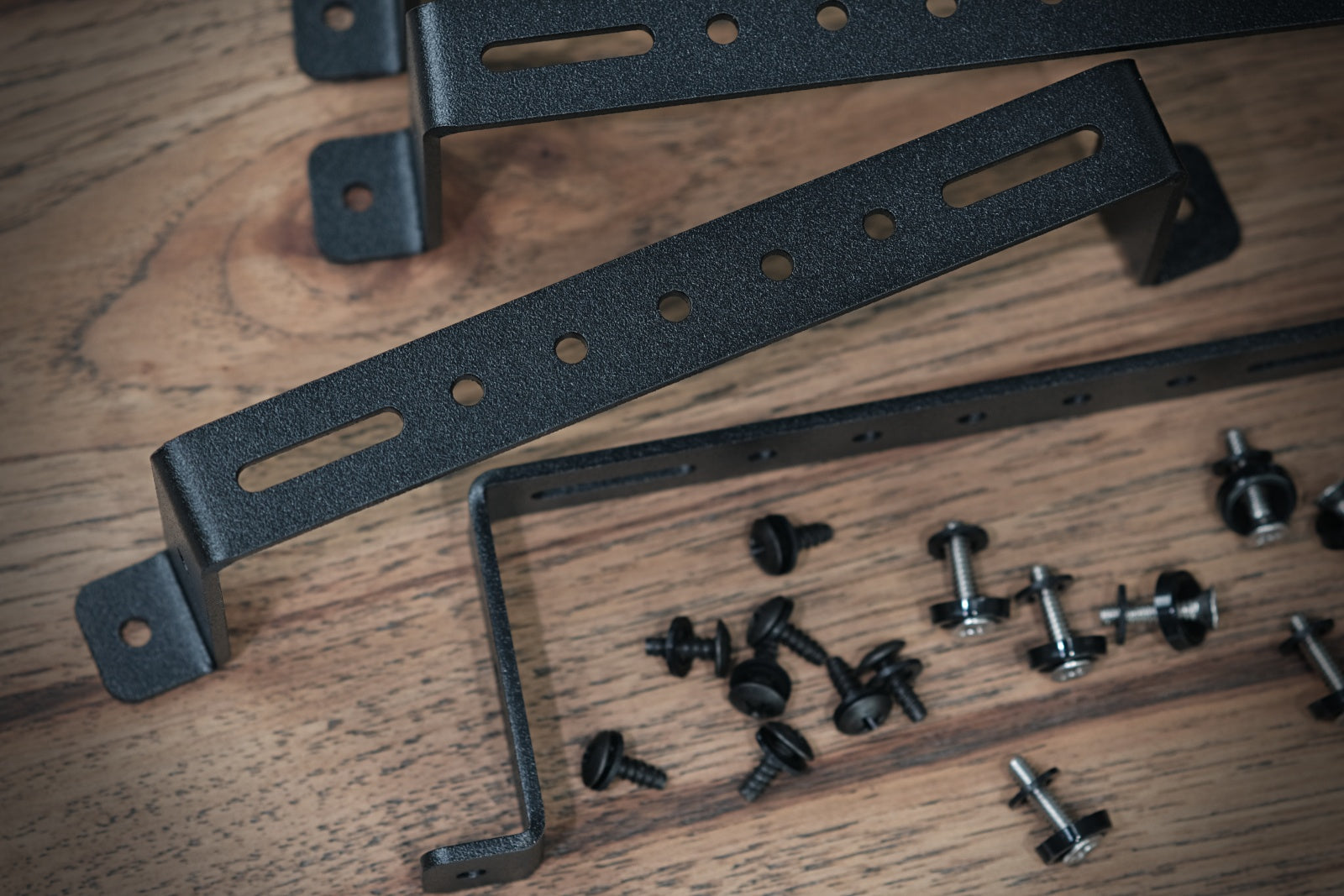

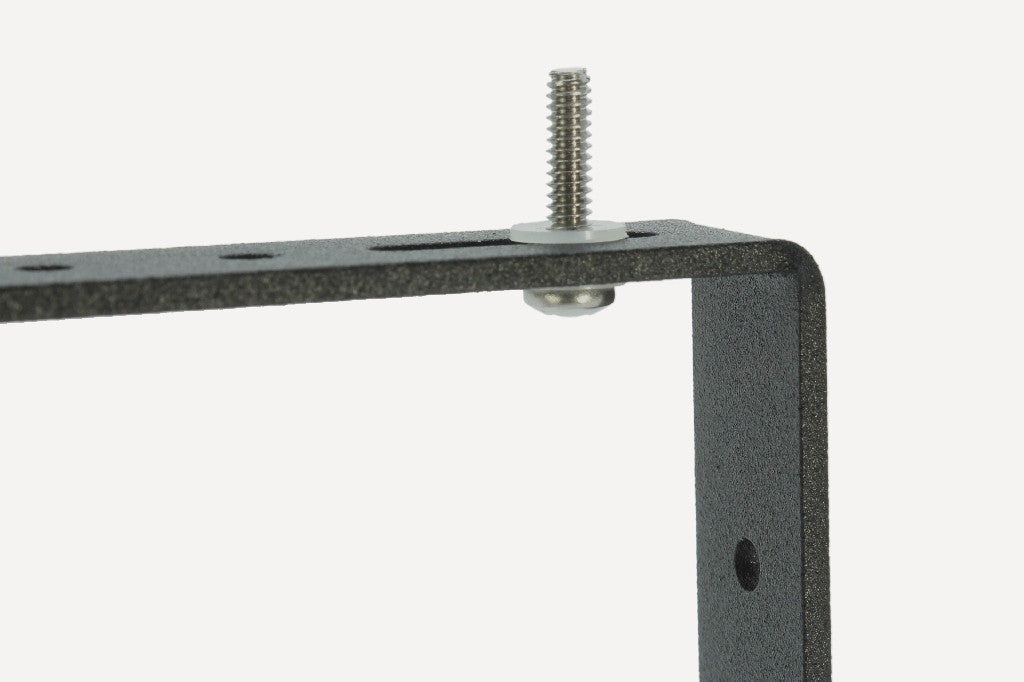

Our exclusive two-piece riser design can span any distance, and the series of slots and holes on the riser tops accommodate many pedal sizes. For easy setup, we've assembled hardware packs specific to different enclosure types.
The minimalist design creates open space on all sides and beneath, far exceeding the flexibility afforded by slats or cable slots. The slotted feet allow for quick removal from the pedalboard.
Developed through years of building and setting up custom pedalboards, Helweg Design screw-mounting brackets and risers offer secure lock-down and quick removal of effect pedals, control units, and power supplies.
Recommended for touring rigs and anyone seeking a professional, no-compromise pedalboard setup.
Simple. Low Profile. Secure mounting. Quick release.
Compatible with thousands of effects pedals.
Our most versatile bracket.
Easily mount the enclosures other brackets can't.
